Rodamientos de bolas de contacto angular
Rodamientos de bolas de contacto angularcuentan con pistas de rodadura tanto en el aro interior como en el exterior que están desplazadas a lo largo del eje del rodamiento. Este diseño les permite soportar cargas combinadas, incluidas fuerzas radiales y axiales, funcionando al mismo tiempo. A medida que el ángulo de contacto se vuelve más pronunciado, la capacidad de estos rodamientos para soportar cargas de empuje también aumenta significativamente.
- View as
Rodamientos de bolas de contacto angular de una hilera
En el campo de la maquinaria de precisión que necesita soportar cargas axiales unidireccionales, los rodamientos de bolas de contacto angular de una hilera de BMT han ganado un amplio reconocimiento por su excelente rendimiento. Utilizamos acero para rodamientos de alta calidad y tecnología de procesamiento precisa para garantizar que cada juego de rodamientos pueda funcionar de manera estable en diversas condiciones de trabajo adversas.
Rodamientos de bolas de contacto de cuatro puntos
Los ingenieros suelen encontrarse con un problema difícil en el campo del diseño de equipos mecánicos. ¿Cómo soportar eficazmente cargas axiales bidireccionales en un espacio limitado? Ésta es precisamente la intención original detrás de nuestro desarrollo de rodamientos de bolas de cuatro puntos de contacto. Después de años de verificación práctica, los rodamientos de la empresa BMT se han convertido en la solución preferida para numerosas aplicaciones industriales.
Rodamientos de bolas de contacto angular de doble hilera
La empresa BMT, como fabricante profesional profundamente comprometida con el campo de fabricación de rodamientos de bolas de contacto angular de dos hileras durante casi dos décadas, BMT es muy consciente de la importancia que tiene el funcionamiento estable del equipo para la eficiencia de la producción. Este producto funciona bien al soportar cargas combinadas debido a su diseño estructural único.

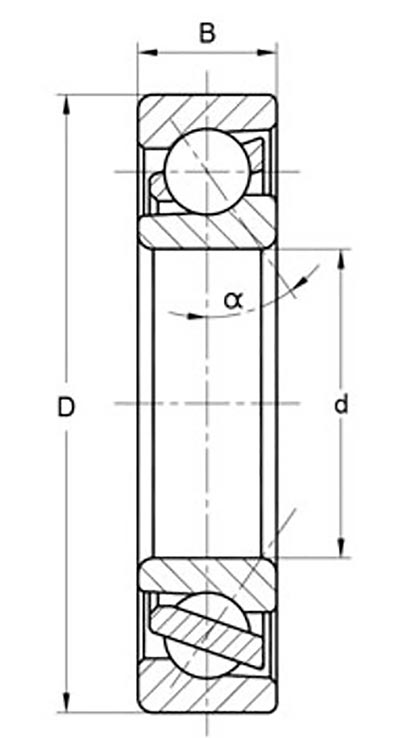

| Artículo | Tipo de sello | re (mm) | diámetro (mm) | B (mm) | Cr dinámico (N) | Cor estático (N) | Notas |
| 30/5 | -/2RS/2Z | 5 | 14 | 7 | 1810 | 950 | r=0,2 mm |
| 30/6 | -/2RS/2Z | 6 | 17 | 9 | 3100 | 1420 | r=0,3 mm |
| 30/7 | -/2RS/2Z | 7 | 19 | 10 | 3650 | 1700 | r=0,3 mm |
| 30/8 | -/2RS/2Z | 8 | 22 | 11 | 5200 | 2650 | r=0,3 mm |
| 3000 | -/2RS/2Z | 10 | 26 | 12 | 5700 | 3250 | r=0,3 mm |
| 3001 | -/2RS/2Z | 12 | 28 | 12 | 6200 | 3750 | r=0,3 mm |
| 3002 | -/2RS/2Z | 15 | 32 | 13 | 8600 | 5400 | r=0,3 mm |
| 3003 | -/2RS/2Z | 17 | 35 | 14 | 9200 | 6200 | r=0,3 mm |
| 3004 | -/2RS/2Z | 20 | 42 | 16 | 14500 | 9600 | r=0,6 mm |
| 3005 | -/2RS/2Z | 25 | 47 | 16 | 15500 | 11100 | r=0,6 mm |
| 3006 | -/2RS/2Z | 30 | 55 | 19 | 20300 | 15600 | r=1,0 mm |
| 3007 | -/2RS/2Z | 35 | 62 | 20 | 24500 | 19400 | r=1,0 mm |
| 3008 | -/2RS/2Z | 40 | 68 | 21 | 25500 | 21700 | r=1,0 mm |
| 3200 | -/2Z | 10 | 30 | 14 | 7800 | 4550 | r=0,6 mm |
| 3201 | -/2Z | 12 | 32 | 15.9 | 10600 | 5850 | r=0,6 mm |
| 3202 | -/2RS/2Z | 15 | 35 | 15.9 | 11800 | 7100 | r=0,6 mm |
| 3203 | -/2RS/2Z | 17 | 40 | 17.5 | 14600 | 9000 | r=0,6 mm |
| 3204 | -/2Z | 20 | 47 | 20.6 | 19600 | 12500 | r=1,0 mm |
| 3205 | -/2RS/2Z | 25 | 52 | 20.6 | 21200 | 14600 | r=1,0 mm |
| 3206 | -/2RS/2Z | 30 | 62 | 23.8 | 30000 | 21200 | r=1,0 mm |
| 3207 | -/2RS/2Z | 35 | 72 | 27 | 39000 | 28500 | r=1,1 mm |
| 3208 | -/2RS/2Z | 40 | 80 | 30.2 | 48000 | 36500 | r=1,1 mm |
| 3209 | -/2RS/2Z | 45 | 85 | 30.2 | 48000 | 37500 | r=1,1 mm |
| 3210 | -/2RS/2Z | 50 | 90 | 30.2 | 51000 | 42500 | r=1,1 mm |
| 3211 | -/2RS/2Z | 55 | 100 | 33.3 | 58500 | 49000 | r=1,5 mm |
| 3212 | -/2RS/2Z | 60 | 110 | 36.5 | 72000 | 61000 | r=1,5 mm |
| 3213 | -/2RS/2Z | 65 | 120 | 38.1 | 80000 | 73500 | r=1,5 mm |
| 3214 | -/2RS/2Z | 70 | 125 | 39.7 | 83000 | 76500 | r=1,5 mm |
| 3215 | -/2RS/2Z | 75 | 130 | 41.3 | 91500 | 85000 | r=1,5 mm |
| 3216 | -/2RS/2Z | 80 | 140 | 44.4 | 98000 | 93000 | r=2,0 mm |
| 3217 | -/2RS/2Z | 85 | 150 | 49.2 | 112000 | 150000 | r=2,0 mm |
| 3218 | -/2RS/2Z | 90 | 160 | 52.4 | 125000 | 170000 | r=2,0 mm |
| 3219-M | - | 95 | 170 | 55.6 | 140000 | 186000 | r=2,1mm |
| 3220-M | - | 100 | 180 | 60.3 | 144000 | 201600 | r=2,1mm |
| 3221-M | - | 105 | 190 | 65.1 | 162000 | 220500 | r=2,1mm |
| 3222-M | - | 110 | 200 | 69.8 | 183600 | 252000 | r=2,1mm |
| 3302 | - | 15 | 42 | 19 | 16300 | 10000 | r=1,0 mm |
| 3303 | - | 17 | 47 | 22.2 | 20800 | 12500 | r=1,0 mm |
| 3304 | -/2RS/2Z | 20 | 52 | 22.2 | 23200 | 15000 | r=1,1 mm |
| 3305 | -/2RS/2Z | 25 | 62 | 25.4 | 30000 | 20000 | r=1,1 mm |
| 3306 | -/2RS/2Z | 30 | 72 | 30.2 | 41500 | 28500 | r=1,1 mm |
| 3307 | -/2RS/2Z | 35 | 80 | 34.9 | 51000 | 34500 | r=1,5 mm |
| 3308 | -/2RS/2Z | 40 | 90 | 36.5 | 62000 | 45000 | r=1,5 mm |
| 3309 | -/2RS/2Z | 45 | 100 | 39.7 | 68000 | 51000 | r=1,5 mm |
| 3310 | -/2RS/2Z | 50 | 110 | 44.4 | 81500 | 62000 | r=2,0 mm |
| 3311 | -/2RS/2Z | 55 | 120 | 49.2 | 102000 | 78000 | r=2,0 mm |
| 3312 | -/2RS/2Z | 60 | 130 | 54 | 125000 | 98000 | r=2,1mm |
| 3313 | -/2RS/2Z | 65 | 140 | 58.7 | 143000 | 112000 | r=2,1mm |
| 3314 | -/2RS/2Z | 70 | 150 | 63.5 | 143000 | 166000 | r=2,1mm |
| 3315 | -/2RS/2Z | 75 | 160 | 68.3 | 146700 | 173700 | r=2,1mm |
| 3316-M | - | 80 | 170 | 68.3 | 158400 | 190800 | r=2,1mm |
| 3317-M | - | 85 | 180 | 73 | 171000 | 205200 | r=3,0 mm |
| 3318-M | - | 90 | 190 | 73 | 194400 | 247500 | r=3,0 mm |
| 3319-M | - | 95 | 200 | 77.8 | 198000 | 256500 | r=3,0 mm |
| 3320-M | - | 100 | 215 | 82.6 | 212400 | 288000 | r=3,0 mm |
| 3322-M | - | 110 | 240 | 92.1 | 243000 | 351000 | r=3,0 mm |
| 3800 | -/2RS/2Z | 10 | 19 | 7 | 2120 | 1400 | r=0,3 mm |
| 3801 | -/2RS/2Z | 12 | 21 | 7 | 2190 | 1550 | r=0,3 mm |
| 3802 | -/2RS/2Z | 15 | 24 | 7 | 2430 | 1960 | r=0,3 mm |
| 3803 | -/2RS/2Z | 17 | 26 | 7 | 2480 | 2080 | r=0,3 mm |
| 3804 | -/2RS/2Z | 20 | 32 | 10 | 5800 | 4850 | r=0,3 mm |
| 3805 | -/2RS/2Z | 25 | 37 | 10 | 6000 | 5600 | r=0,3 mm |
| 3806 | -/2RS/2Z | 30 | 42 | 10 | 6300 | 6100 | r=0,3 mm |
| 3807 | -/2RS/2Z | 35 | 47 | 10 | 6700 | 7000 | r=0,3 mm |
| 3808 | -/2RS/2Z | 40 | 52 | 10 | 7000 | 7800 | r=0,3 mm |
| 3809 | -/2RS/2Z | 45 | 58 | 10 | 7200 | 8300 | r=0,3 mm |
| 3810 | -/2RS/2Z | 50 | 65 | 12 | 8700 | 10400 | r=0,3 mm |
| 3811 | -/2RS/2Z | 55 | 72 | 13 | 12100 | 15700 | r=0,3 mm |
| 3812 | -/2RS/2Z | 60 | 78 | 14 | 14500 | 17500 | r=0,3 mm |
| 3813 | -/2RS/2Z | 65 | 85 | 15 | 17700 | 21400 | r=0,6 mm |
| 3814 | -/2RS/2Z | 70 | 90 | 15 | 19200 | 23800 | r=0,6 mm |
| 3815 | -/2RS/2Z | 75 | 95 | 15 | 19400 | 24400 | r=0,6 mm |
| 3816 | -/2RS/2Z | 80 | 100 | 15 | 19600 | 25500 | r=0,6 mm |
| 7200B | - / 2RS | 10 | 30 | 9 | 5040 | 2470 | r=0,6 mm, r1=0,3 mm, a=13° |
| 7201B | - / 2RS | 12 | 32 | 10 | 7030 | 3370 | r=0,6 mm, r1=0,3 mm, a=14° |
| 7202B | - / 2RS | 15 | 35 | 11 | 7980 | 4230 | r=0,6 mm, r1=0,3 mm, a=16° |
| 7203B | - / 2RS | 17 | 40 | 12 | 9980 | 5420 | r=0,6 mm, r1=0,3 mm, a=18° |
| 7204B | - / 2RS | 20 | 47 | 14 | 13300 | 7410 | r=1,0 mm, r1=0,6 mm, a=21° |
| 7205B | - / 2RS | 25 | 52 | 15 | 14540 | 8550 | r=1,0 mm, r1=0,6 mm, a=24° |
| 7206B | - / 2RS | 30 | 62 | 16 | 20620 | 13400 | r=1,0 mm, r1=0,6 mm, a=27° |
| 7207B | - / 2RS | 35 | 72 | 17 | 26600 | 18050 | r=1,1 mm, r1=0,6 mm, a=31° |
| 7208B | - / 2RS | 40 | 80 | 18 | 32300 | 22330 | r=1,1 mm, r1=0,6 mm, a=34° |
| 7209B | - / 2RS | 45 | 85 | 19 | 35630 | 25650 | r=1,1 mm, r1=0,6 mm, a=37° |
| 7210B | - / 2RS | 50 | 90 | 20 | 37050 | 27080 | r=1,1 mm, r1=0,6 mm, a=39° |
| 7211B | - / 2RS | 55 | 100 | 21 | 46550 | 36580 | r=1,5 mm, r1=1,0 mm, a=43° |
| 7212B | - / 2RS | 60 | 110 | 22 | 56050 | 42750 | r=1,5 mm, r1=1,0 mm, a=47° |
| 7213B | - | 65 | 120 | 23 | 60300 | 49500 | r=1,5 mm, r1=1,0 mm, a=51° |
| 7214B | - | 70 | 125 | 24 | 66600 | 55800 | r=1,5 mm, r1=1,0 mm, a=53° |
| 7215B | - | 75 | 130 | 25 | 65700 | 55800 | r=1,5 mm, r1=1,0 mm, a=56° |
| 7216B | - | 80 | 140 | 26 | 76500 | 64800 | r=2,0 mm, r1=1,0 mm, a=59° |
| 7217B | - | 85 | 150 | 28 | 87300 | 77400 | r=2,0 mm, r1=1,0 mm, a=63° |
| 7218B | - | 90 | 160 | 30 | 102600 | 88200 | r=2,0 mm, r1=1,0 mm, a=67° |
| 7219B | - | 95 | 170 | 32 | 110700 | 95400 | r=2,1 mm, r1=1,1 mm, a=72° |
| 7220B M | - | 100 | 180 | 34 | 127800 | 111600 | r=2,1 mm, r1=1,1 mm, a=76° |
| 7221B M | - | 105 | 190 | 36 | 139500 | 127800 | r=2,1 mm, r1=1,1 mm, a=80° |
| 7222BM | - | 110 | 200 | 38 | 150300 | 138600 | r=2,1 mm, r1=1,1 mm, a=84° |
| 7224B M | - | 120 | 215 | 40 | 163800 | 160200 | r=2,1 mm, r1=1,1 mm, a=90° |
| 7226BM | - | 130 | 230 | 40 | 180000 | 183600 | r=3,0 mm, r1=1,1 mm, a=96° |
| 7228BM | - | 140 | 250 | 42 | 192600 | 207900 | r=3,0 mm, r1=1,1 mm, a=103° |
| 7230B M | - | 150 | 270 | 45 | 220500 | 247500 | r=3,0 mm, r1=1,1 mm, a=111° |
| 7232B M | - | 160 | 290 | 48 | 212400 | 252000 | r=3,0 mm, r1=1,1 mm, a=118° |
| 7234B M | - | 170 | 310 | 52 | 238500 | 292500 | r=4,0 mm, r1=1,5 mm, a=127° |
| 7301B | - | 12 | 37 | 12 | 10830 | 5040 | r=1,0 mm, r1=0,6 mm, a=16° |
| 7302B | - / 2RS | 15 | 42 | 13 | 13490 | 6840 | r=1,0 mm, r1=0,6 mm, a=18° |
| 7303B | - / 2RS | 17 | 47 | 14 | 16720 | 8550 | r=1,0 mm, r1=0,6 mm, a=20° |
| 7304B | - / 2RS | 20 | 52 | 15 | 19380 | 10550 | r=1,1 mm, r1=0,6 mm, a=23° |
| 7305B | - / 2RS | 25 | 62 | 17 | 26600 | 15010 | r=1,1 mm, r1=0,6 mm, a=27° |
| 7306B | - / 2RS | 30 | 72 | 19 | 33730 | 21000 | r=1,1 mm, r1=0,6 mm, a=31° |
| 7307B | - / 2RS | 35 | 80 | 21 | 40850 | 26130 | r=1,5 mm, r1=1,0 mm, a=35° |
| 7308B | - / 2RS | 40 | 90 | 23 | 50350 | 32780 | r=1,5 mm, r1=1,0 mm, a=39° |
| 7309B | - / 2RS | 45 | 100 | 25 | 61750 | 40850 | r=1,5 mm, r1=1,0 mm, a=43° |
| 7310B | - / 2RS | 50 | 110 | 27 | 71250 | 47500 | r=2,0 mm, r1=1,0 mm, a=47° |
| 7311B | - / 2RS | 55 | 120 | 29 | 81700 | 57950 | r=2,0 mm, r1=1,0 mm, a=51° |
| 7312B | - / 2RS | 60 | 130 | 31 | 91200 | 65550 | r=2,1 mm, r1=1,1 mm, a=55° |
| 7313B | - | 65 | 140 | 33 | 99000 | 73800 | r=2,1 mm, r1=1,1 mm, a=60° |
| 7314B | - | 70 | 150 | 35 | 113400 | 83700 | r=2,1 mm, r1=1,1 mm, a=64° |
| 7315B | - | 75 | 160 | 37 | 126000 | 96300 | r=2,1 mm, r1=1,1 mm, a=68° |
| 7316B | - | 80 | 170 | 39 | 139500 | 111600 | r=2,1 mm, r1=1,1 mm, a=72° |
| 7317B | - | 85 | 180 | 41 | 150300 | 124200 | r=3,0 mm, r1=1,1 mm, a=76° |
| 7318B | - | 90 | 190 | 43 | 162000 | 139500 | r=3,0 mm, r1=1,1 mm, a=80° |
| 7319B | - | 95 | 200 | 45 | 170100 | 150300 | r=3,0 mm, r1=1,1 mm, a=84° |
| 7320BM | - | 100 | 215 | 47 | 192600 | 177300 | r=3,0 mm, r1=1,1 mm, a=90° |
| 7321B M | - | 105 | 225 | 49 | 202500 | 192600 | r=3,0 mm, r1=1,1 mm, a=94° |
| 7322BM | - | 110 | 240 | 50 | 225000 | 220500 | r=3,0 mm, r1=1,1 mm, a=98° |
| 7324B M | - | 120 | 260 | 55 | 247500 | 256500 | r=3,0 mm, r1=1,1 mm, a=107° |
| 7326BM | - | 130 | 280 | 58 | 274500 | 292500 | r=4,0 mm, r1=1,5 mm, a=115° |
| 7328BM | - | 140 | 300 | 62 | 270000 | 310500 | r=4,0 mm, r1=1,5 mm, a=123° |
| 7330B M | - | 150 | 320 | 65 | 292500 | 351000 | r=4,0 mm, r1=1,5 mm, a=131° |
| 7332B M | - | 160 | 340 | 68 | 324000 | 405000 | r=4,0 mm, r1=1,5 mm, a=139° |
| 7334B M | - | 170 | 360 | 72 | 364500 | 477000 | r=4,0 mm, r1=1,5 mm, a=147° |
| 7406 ACM | - | 30 | 90 | 23 | 55600 | 37700 | ángulo=25° |
| 7406BM | - | 30 | 90 | 23 | 47500 | 29000 | ángulo=40° |
| 7407 ACM | - | 35 | 100 | 25 | 66400 | 41900 | ángulo=25° |
| 7407BM | - | 35 | 100 | 25 | 60500 | 38000 | ángulo=40° |
| 7408 ACM | - | 40 | 110 | 27 | 73700 | 42100 | ángulo=25° |
| 7408BM | - | 40 | 110 | 27 | 70200 | 45000 | ángulo=40° |
| 7409 ACM | - | 45 | 120 | 29 | 84500 | 55100 | ángulo=25° |
| 7409BM | - | 45 | 120 | 29 | 80700 | 44100 | ángulo=40° |
| 7410 ACM | - | 50 | 130 | 31 | 115800 | 78300 | ángulo=25° |
| 7410 MB | - | 50 | 130 | 31 | 95600 | 64000 | ángulo=40° |
| 7411 ACM | - | 55 | 140 | 33 | 121400 | 84500 | ángulo=25° |
| 7411BM | - | 55 | 140 | 33 | 111000 | 76500 | ángulo=40° |
| 7412 ACM | - | 60 | 150 | 35 | 131800 | 95300 | ángulo=25° |
| 7412 MB | - | 60 | 150 | 35 | 119000 | 86500 | ángulo=40° |
| QJ208 | - | 40 | 80 | 18 | 52700 | 45000 | r=1,1 mm, Cu=3050N, Grasa:6900rpm |
| QJ209 | - | 45 | 85 | 19 | 58500 | 51000 | r=1,1 mm, Cu=3500N, Grasa:6200rpm |
| QJ210 | - | 50 | 90 | 20 | 61800 | 56000 | r=1,1 mm, Cu=3800N, Grasa:5600rpm |
| QJ211 | - | 55 | 100 | 21 | 79300 | 76500 | r=1,5 mm, Cu=4800N, Grasa:5100rpm |
| QJ212 | - | 60 | 110 | 22 | 92300 | 86500 | r=1,5 mm, Cu=5900N, Grasa:4700rpm |
| QJ213 | - | 65 | 120 | 23 | 104000 | 110000 | r=1,5 mm, Cu=6550N, Grasa:4400rpm |
| QJ214 | - | 70 | 125 | 24 | 114000 | 120000 | r=1,5 mm, Cu=7150N, Grasa:4000rpm |
| QJ215 | - | 75 | 130 | 25 | 117000 | 122000 | r=1,5 mm, Cu=7550N, Grasa:3800rpm |
| QJ216 | - | 80 | 140 | 26 | 138000 | 146000 | r=2,0 mm, Cu=8650N, Grasa:3500rpm |
| QJ217 | - | 85 | 150 | 28 | 148000 | 160000 | r=2,0 mm, Cu=9650N, Grasa:3300rpm |
| QJ218 | - | 90 | 160 | 30 | 174000 | 186000 | r=2,0 mm, Cu=11100N, Grasa:3100rpm |
| QJ219 | - | 95 | 170 | 32 | 199000 | 210000 | r=2,1 mm, Cu=12400N, Grasa:3000rpm |
| QJ220 | - | 100 | 180 | 34 | 225000 | 240000 | r=2,1 mm, Cu=12900N, Grasa:2800rpm |
| QJ222 | - | 110 | 200 | 38 | 265000 | 305000 | r=2,1 mm, Cu=15500N, Grasa:2500rpm |
| QJ224 | - | 120 | 215 | 40 | 286000 | 340000 | r=2,1 mm, Cu=17700N, Grasa:2300rpm |
| QJ306 | - | 30 | 72 | 19 | 44000 | 57500 | r=1,1 mm, Cu=2460N, Grasa:8000rpm |
| QJ307 | - | 30 | 80 | 21 | 55000 | 73000 | r=1,5 mm, Cu=3150N, Grasa:7000rpm |
| QJ308 | - | 40 | 90 | 23 | 67000 | 91500 | r=1,5 mm, Cu=3950N, Grasa:6200rpm |
| QJ309 | - | 45 | 100 | 25 | 87000 | 121000 | r=1,5 mm, Cu=5200N, Grasa:5500rpm |
| QJ310 | - | 50 | 110 | 27 | 102000 | 145000 | r=2,0 mm, Cu=6200N, Grasa:5000rpm |
| QJ311 | - | 55 | 120 | 29 | 118000 | 170000 | r=2,0 mm, Cu=7300N, Grasa:4600rpm |
| QJ312 | - | 60 | 130 | 31 | 135000 | 198000 | r=2,1 mm, Cu=8500N, Grasa:4200rpm |
| QJ313 | - | 65 | 140 | 33 | 153000 | 228000 | r=2,1 mm, Cu=9700N, Grasa:3900rpm |
| QJ314 | - | 70 | 150 | 35 | 172000 | 260000 | r=2,1 mm, Cu=10700N, Grasa:3600rpm |
| QJ315 | - | 75 | 160 | 37 | 187000 | 294000 | r=2,1 mm, Cu=11700N, Grasa:3400rpm |
| QJ316 | - | 80 | 170 | 39 | 202000 | 330000 | r=2,1 mm, Cu=12700N, Grasa:3200rpm |
| QJ317 | - | 85 | 180 | 41 | 218000 | 370000 | r=3,0 mm, Cu=13800N, Grasa:3000rpm |
| QJ318 | - | 90 | 190 | 43 | 235000 | 410000 | r=3,0 mm, Cu=14800N, Grasa:2800rpm |
| QJ319 | - | 95 | 200 | 45 | 251000 | 450000 | r=3,0 mm, Cu=16000N, Grasa:2700rpm |
| QJ320 | - | 100 | 215 | 47 | 302000 | 585000 | r=3,0 mm, Cu=20000N, Grasa:2500rpm |
| QJ322 | - | 110 | 240 | 50 | 338000 | 680000 | r=3,0 mm, Cu=22100N, Grasa:2300rpm |
| QJ324 | - | 120 | 260 | 55 | 359000 | 765000 | r=3,0 mm, Cu=23800N, Grasa:2100rpm |
| VLU 200414 | - | 304 | 518 | 111 | 111000 | 110000 | Axiales:Ca=169kN/Coa=295kN |
| VLU 200544 | - | 434 | 648 | 123 | 123000 | 145000 | Axiales:Ca=188kN/Coa=385kN |
| VLU 200644 | - | 534 | 748 | 131 | 131000 | 171000 | Axiales:Ca=200kN/Coa=455kN |
| VLU 200744 | - | 634 | 848 | 138 | 138000 | 198000 | Axiales:Ca=211kN/Coa=530kN |
| VLU 200844 | - | 734 | 948 | 145 | 145000 | 224000 | Axiales:Ca=222kN/Coa=600kN |
| VLU 200944 | - | 834 | 1048 | 151 | 151000 | 250000 | Axiales:Ca=231kN/Coa=670kN |
| VLU 201094 | - | 984 | 1198 | 160 | 160000 | 290000 | Axiales:Ca=244kN/Coa=770kN |
| VSU 200414 | - | 342 | 486 | 111 | 111000 | 248000 | Axiales:Ca=169kN/Coa=560kN |
| VSU 200544 | - | 472 | 616 | 123 | 123000 | 325000 | Axiales:Ca=188kN/Coa=740kN |
| VSU 200644 | - | 572 | 716 | 131 | 131000 | 385000 | Axiales:Ca=200kN/Coa=880kN |
| VSU 200744 | - | 672 | 816 | 138 | 138000 | 445000 | Axiales:Ca=211kN/Coa=1010kN |
| VSU 200844 | - | 772 | 916 | 145 | 145000 | 510000 | Axiales:Ca=222kN/Coa=1150kN |
| VSU 200944 | - | 872 | 1016 | 151 | 151000 | 570000 | Axiales:Ca=231kN/Coa=1280kN |
| VSU 201094 | - | 1022 | 1166 | 160 | 160000 | 660000 | Axiales:Ca=244kN/Coa=1490kN |
